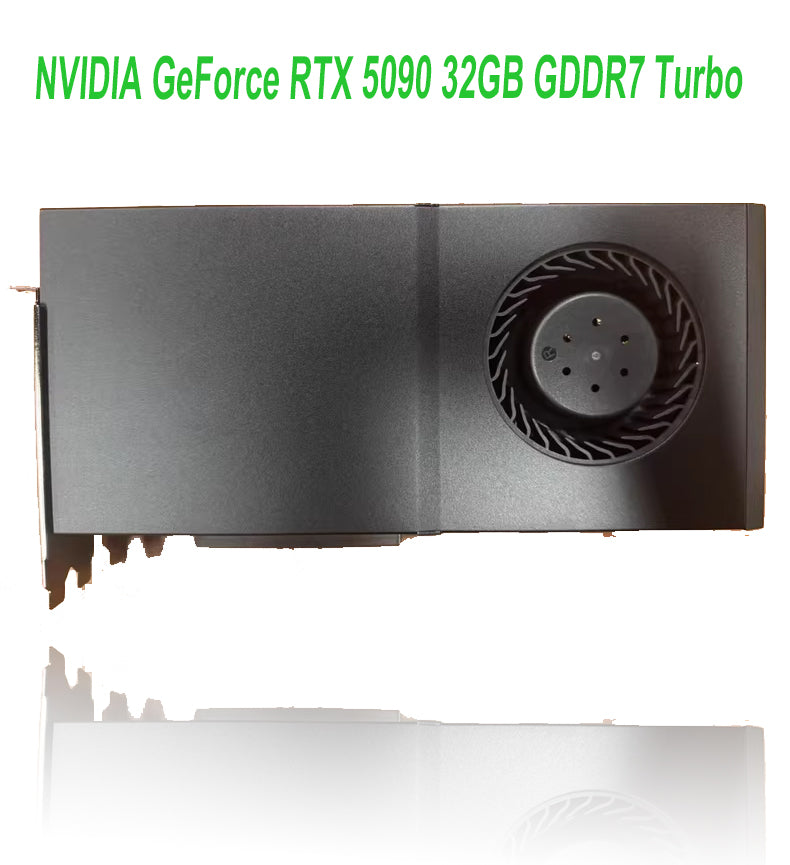

NVIDIA GeForce RTX 5090 32GB GDDR7 Turbo 2Slot Graphics Card

1.RTX5090 32GD7 Turbo v1

2. PCIE x16 Graphics Card RTX5090 32GB 512Bit GDDR7 Turbo

Product Parameters

1. Function: productivity graphics card, computing graphics card, server dual-slot graphics card, AI computing power card
   2. Cooling method: turbo side blowing PCB version: HR5091
   3. Color: black Size: 266 x 134 mm
   4. Core: GPU GB202-300
   5. Process: TSMC 4nm (NVIDIA custom process) Architecture: Blackwell
   6. CUDA core number: 21760 Base frequency: 2017 MHz
   7. Acceleration frequency: 2407 MHz RT Core: 318 TFLOPS (4th)
   8. Tensor Core (AI): 3352 AI TOPS (5th)
   9. Texture units (TMUs): 680 Raster units (ROPs): 176
   10 Video memory: Distribution 16 on the front: Type: GDDR7
   11. Capacity: 32768 MB (32 GB) Frequency: 1750 MHz
   12 Rate: 28 Gbps Bit width: 512 Bit Bandwidth: 1792 GB/s
   13. Interface: Output interface 3x Displayport, 1x HDMI
   14. Multi-screen display: 4 screens Maximum resolution*: 4K @480Hz / 8K @165Hz with DSC technology
   15. NV-Link: Not supported Backplane: Metal backplane RGB light: None Iron bar: Standard double-slot iron bar
   16. Bus standard: PCI-E x16 5.0 @ x16

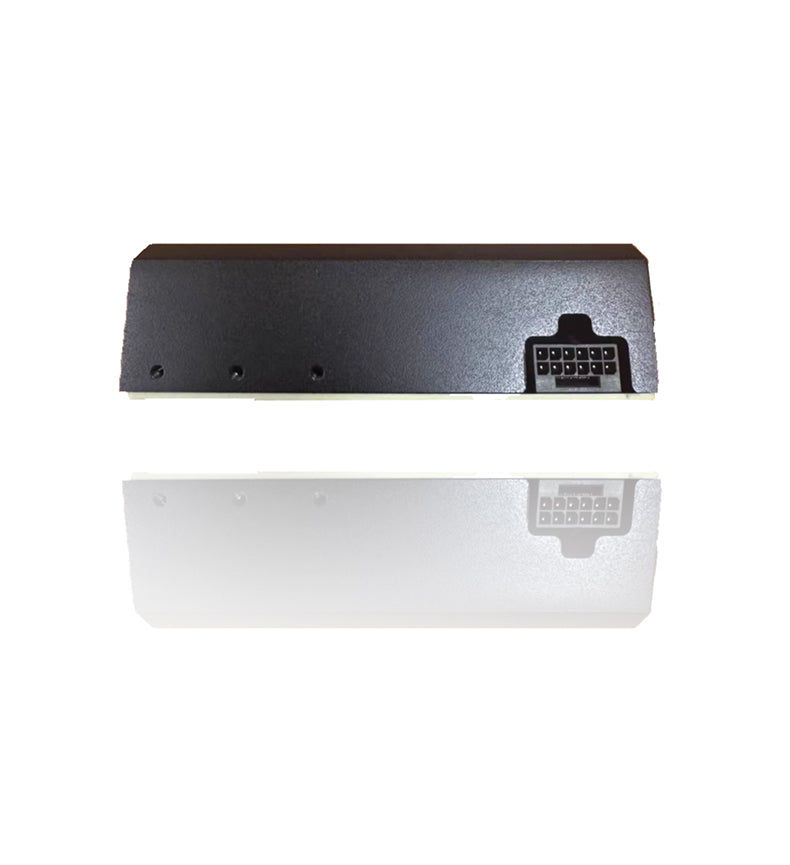

   17. Auxiliary power supply: 1x 16Pin (Note that the 5th generation 600w PCIE auxiliary power supply line is required. If the adapter line is used, at least 4x PCIE 8pin is required)
   18. Power consumption: 575 W Recommended power supply rated at 1000 W or above
   19 Finished product size: 280 x 150.4 x 40.5mm (including iron bar)
   10 Slots: 2 Slot
