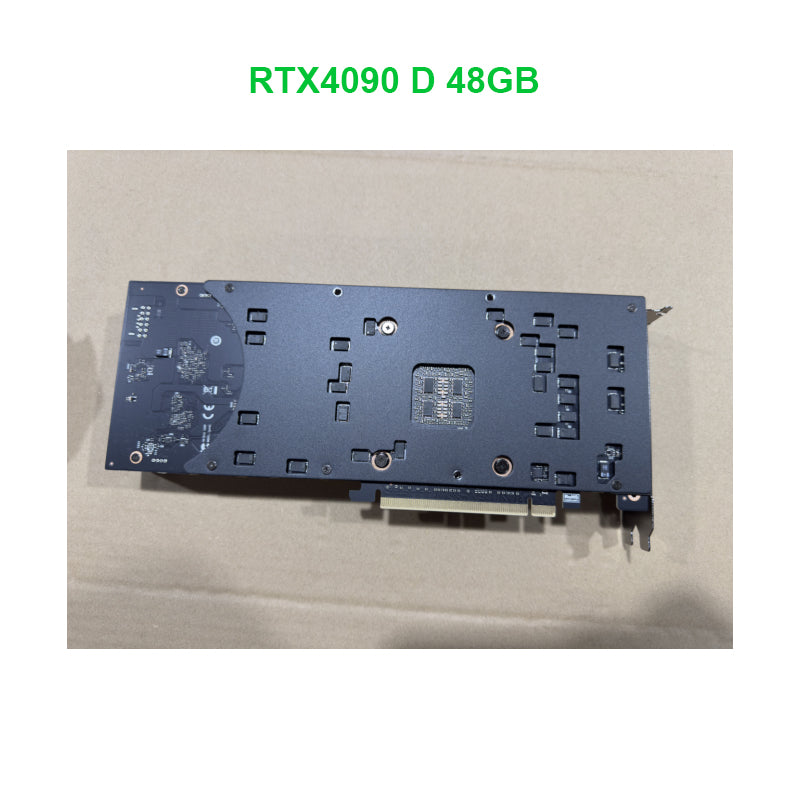

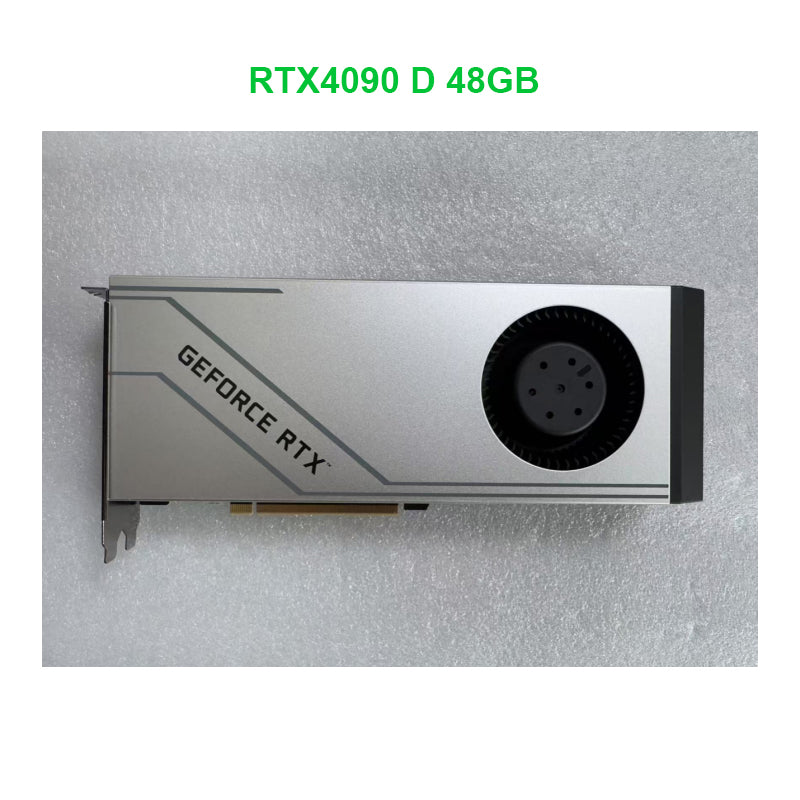

OEM 48GB RTX 4090 Founders Edition Double Width GPU Graphics Card Ganming/Server

OEM 48GB RTX 4090 Founders Edition Double Width GPU Graphics Card Ganming/Server

1. Technical specifications
1. Component name: PCIE graphics card RTX4090D 48GB 384BIT GDDR6X
2. Functional description: graphics card function
3. Special device requirements: GPU core: AD102-250-A1 CUDA core: 14592: TDP power consumption 425W
4. Video memory encoding: GDDR6X 512*32 24PCS MT 2GU47 D8BZC
5. Output interface: 1xHDMI 2.1+3x DisplayPort 1.4a
6. Cooling method: 4-PIN turbo fan
7. 3D API DirectX12 Ultimate (12_2), OpenGL4.6
8. Other features: UEFI: support, support NV technology: CUDA, Shader Model
9. Pcie interface: PCIe 4.0 x16
10 Display support mode (only for graphics cards) support NVIDIA®
GeForce Experience, NVIDIA® Ansel, NVIDIA® Highlights, NVIDIA® G-SYNC™
Compatible with game-ready drivers, real-time ray tracing, Microsoft® DirectX® 12(12_2) API, Vulkan
Application Programming Interface OpenGL4. 6,.support SLI.
11. Resolution: • HDMI™ 2.1 Maximum Resolution: 7680 x4320 x24bpp at 60Hz
• DisplayPort 1.4a Maximum Pixel Frequency: 2120M/pixel per second
Maximum Bandwidth: 32.4Gbps, Maximum Resolution Example with CVT-RB Timing
7680 x4320 x24bpp at 120Mz
7680 x4320 x36bpp at 60Mz
5120 x92880 x24bpp at 60Mz
12. Electrical Specifications: Chip Frequency
2280MHZ BOOST:2520MHZ
13.Memory frequency: 1313MHZ 21Gbps
14.Capacity: 48GB
15.Software specifications: Operating system requirements: Winwods7 Windows10 Windows11
Component BOM
16.Fan test conditions: High temperature experiment 50±5 degrees high temperature aging for 8 hours, should be able to operate normally.
17. Ambient temperature 45 degrees PASS
